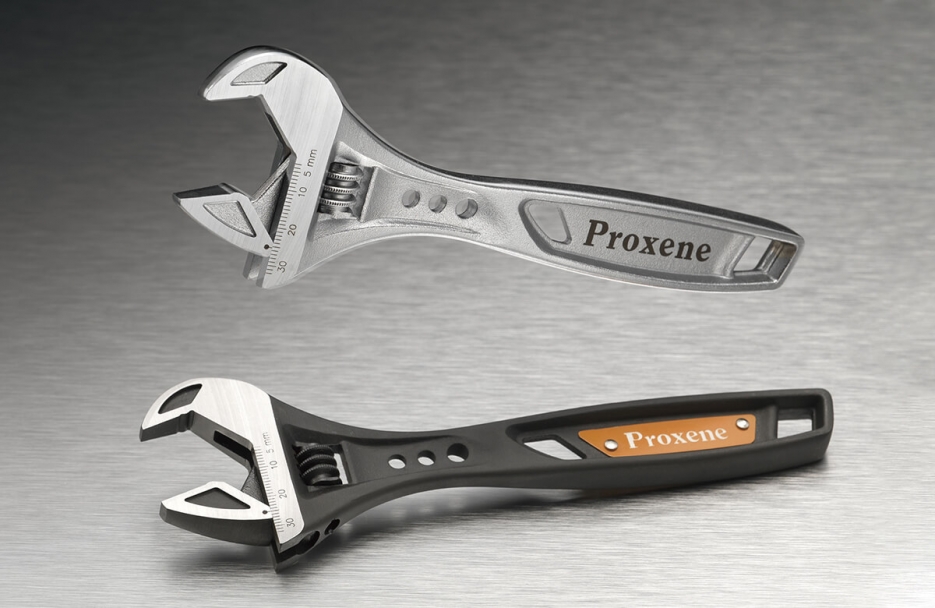

TP-Talent Series
- Industrial angle 15°:
Allows wrench to be used in smaller area. - Superior:
30% ~ 48% wider Jaw Opening increases useful range of fastener sizes. - Special head angle design:
Perfect engagement with flats of any size nut. - Nuts corner protectors:
Available for 100% of nuts. - High Torque performance:
At least 50% higher than standard. - Durability:
The patented triangle-sinkage design on product head, increase the hardness on jaws edge by 3HRC. - Strong handle:
60% thicker Handle provides a comfortable hand fit and makes it easy to apply the force. - Space saving:
Non-Protruding on the movable jaw end which allows a greater ease of use in tight spaces.
Outstanding Metal plate branding is available.
Application Industry
Specifications
| SIZE (mm) | STANDARD JAW OPENING (mm) | MINIMUM JAW OPENING (mm) | FASTENER USING RANGE |
THE PROTECTED FASTENER RANGE | |
| METRIC HEXAGON NUT'S SIZE | SAE HEXAGON NUT'S SIZE | ||||
| 6" (150mm) |
20mm |
28mm |
M1.6~M16 |
W1/16~W1 3/32 |
M1.6~M16 |
| 8" (200mm) |
24mm | 32mm | M1.6~M20 |
W1/8~W1-1/4 |
M1.6~M20 |
| 10" (250mm) |
29mm | 43mm | M2~M24 |
W3/16~W1-11/16 |
M2~M24 |
| 12" (300mm) |
34mm | 53mm | M2~M30 |
W3/16~W2-1/16 |
M2~M30 |
