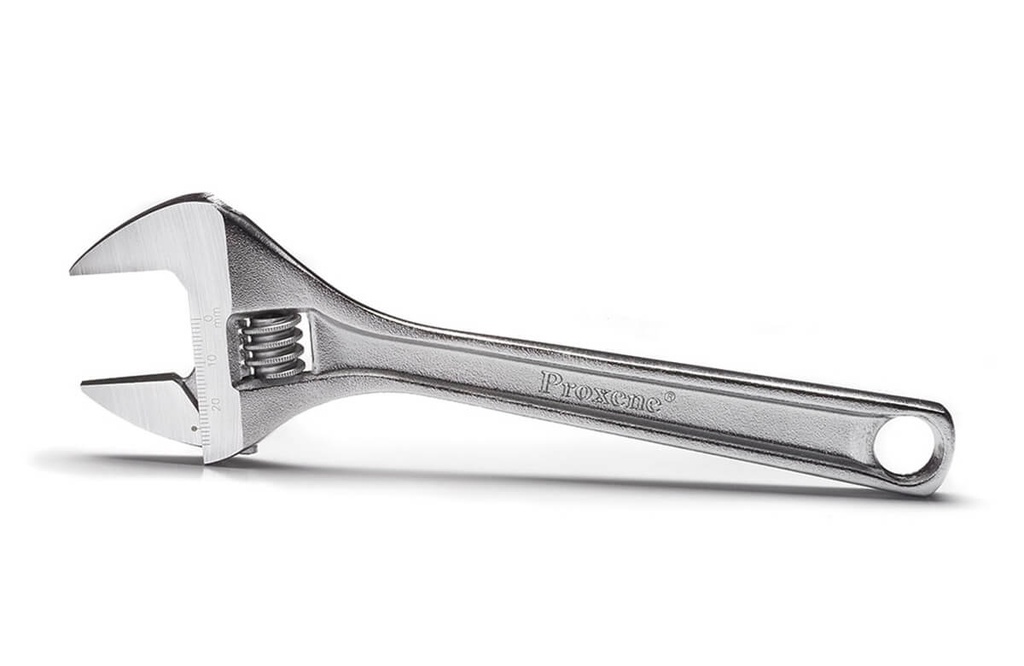

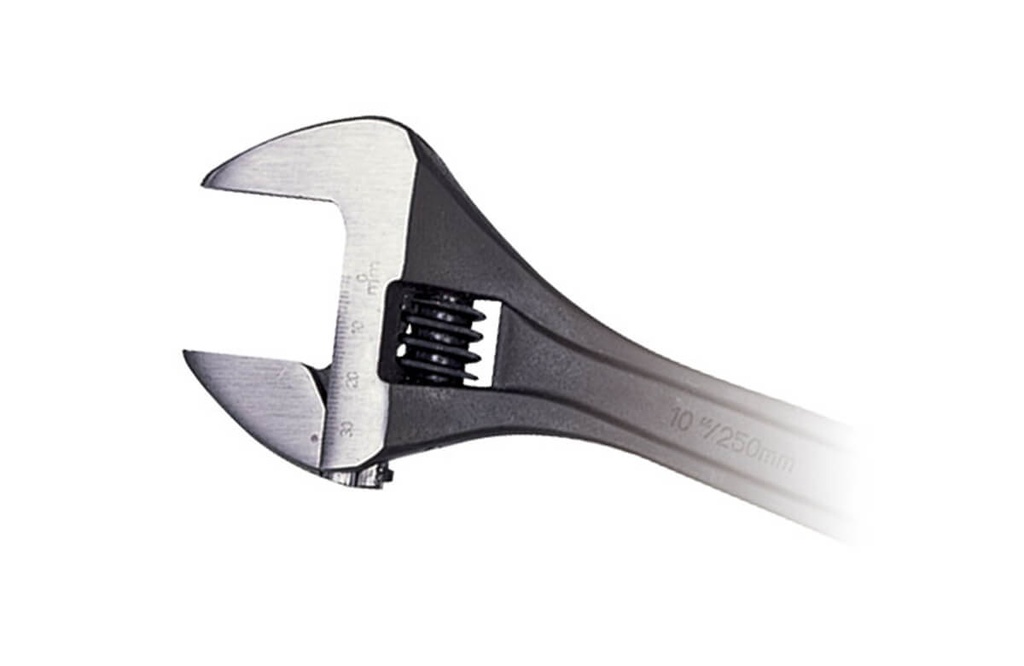

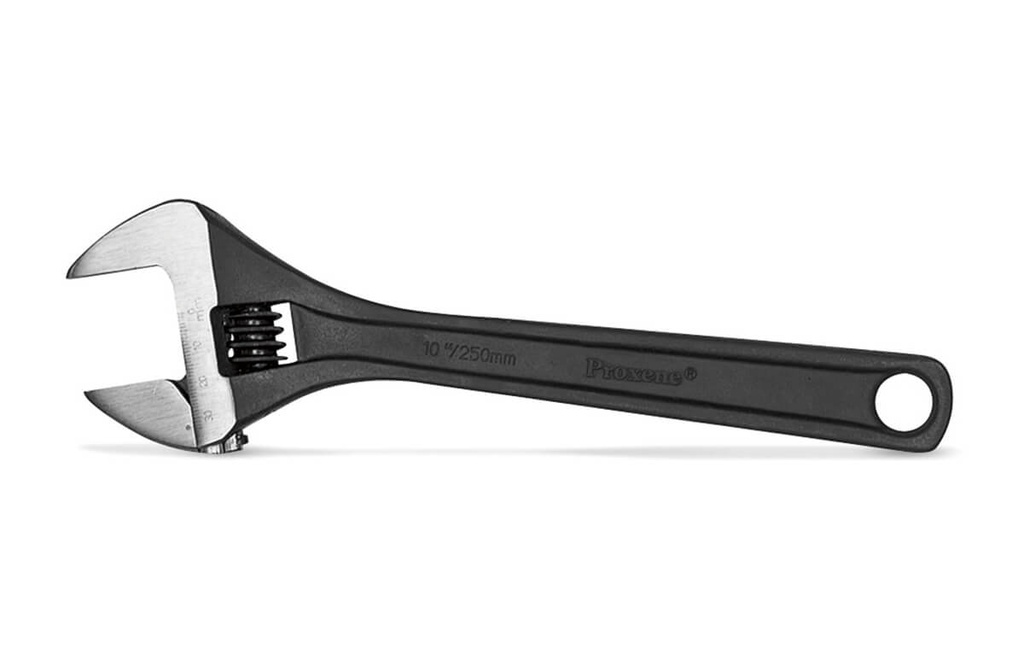

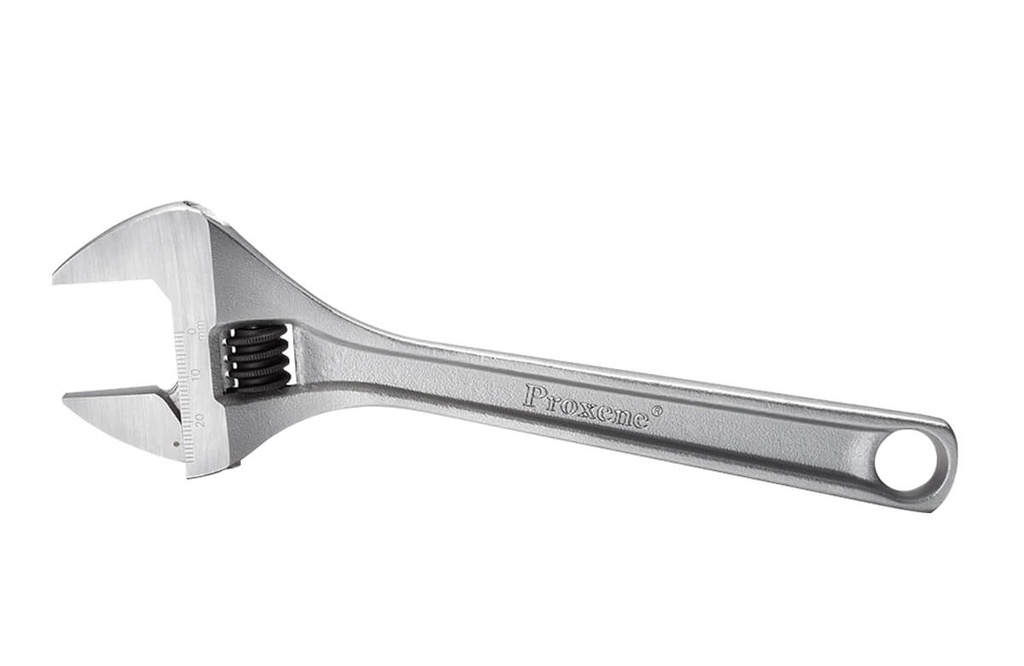

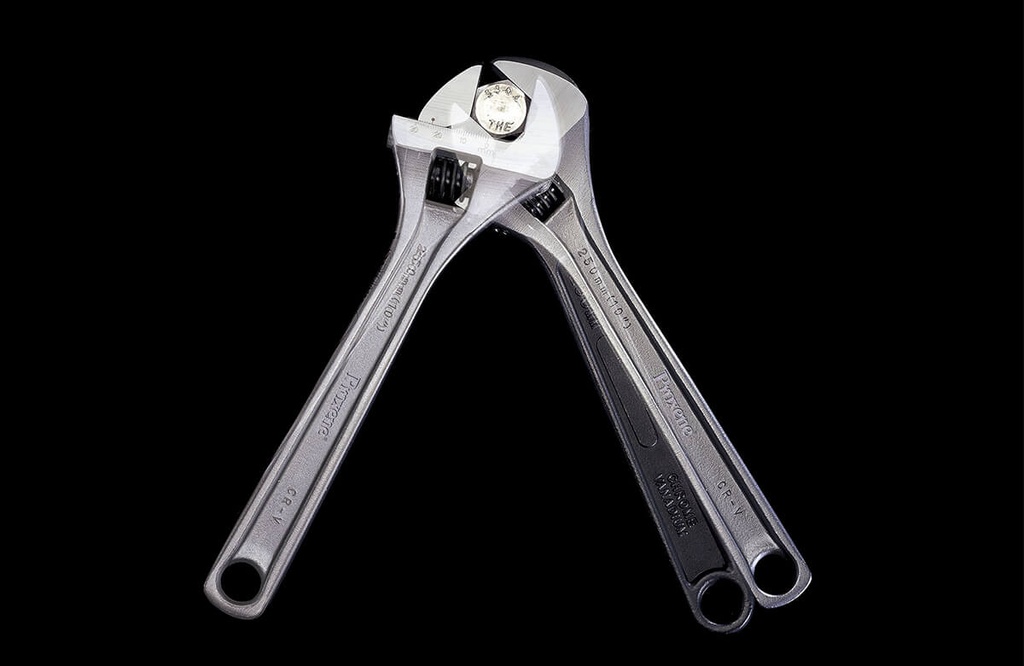

AP-Specialist Series
- Industrial angle 15° Allows wrench to be used in smaller area.

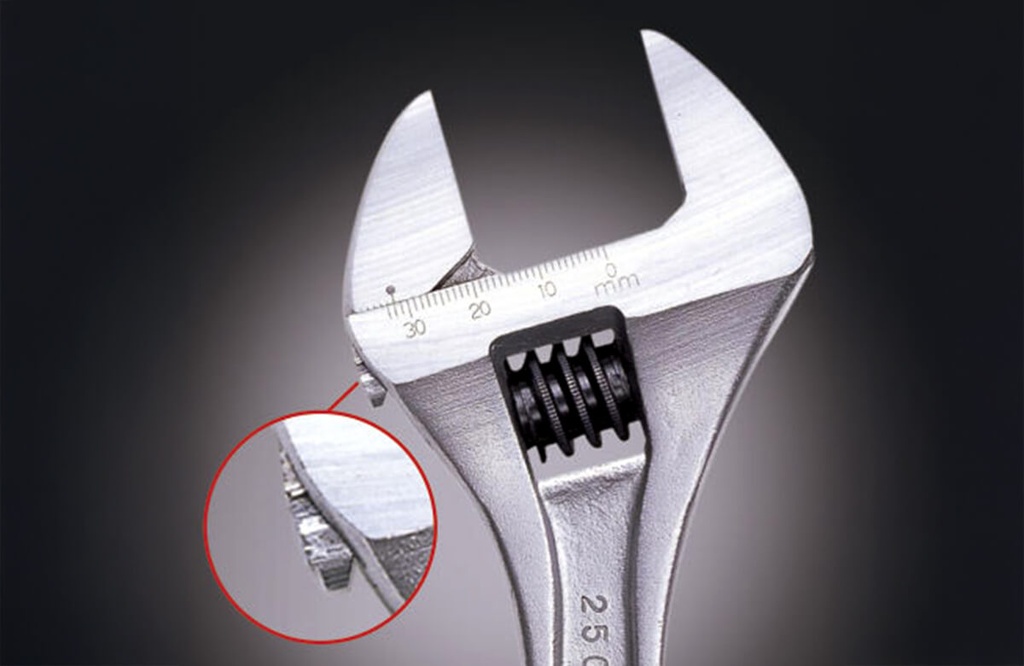

- Superior 18% - 25% wider Jaw Opening increases useful range of fastener sizes.
- Space saving Non-Protruding on the movable jaw end. This allows a greater ease of use in tight spaces.

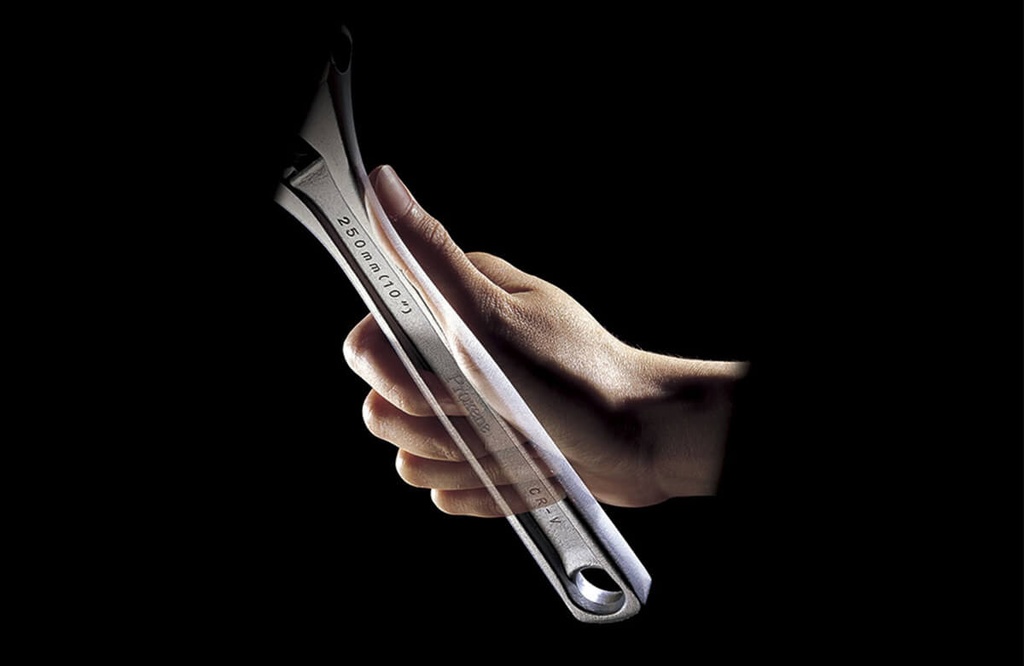

- Strong handle 60% thicker Handle provides a comfortable hand fit and makes it easy to apply the force.

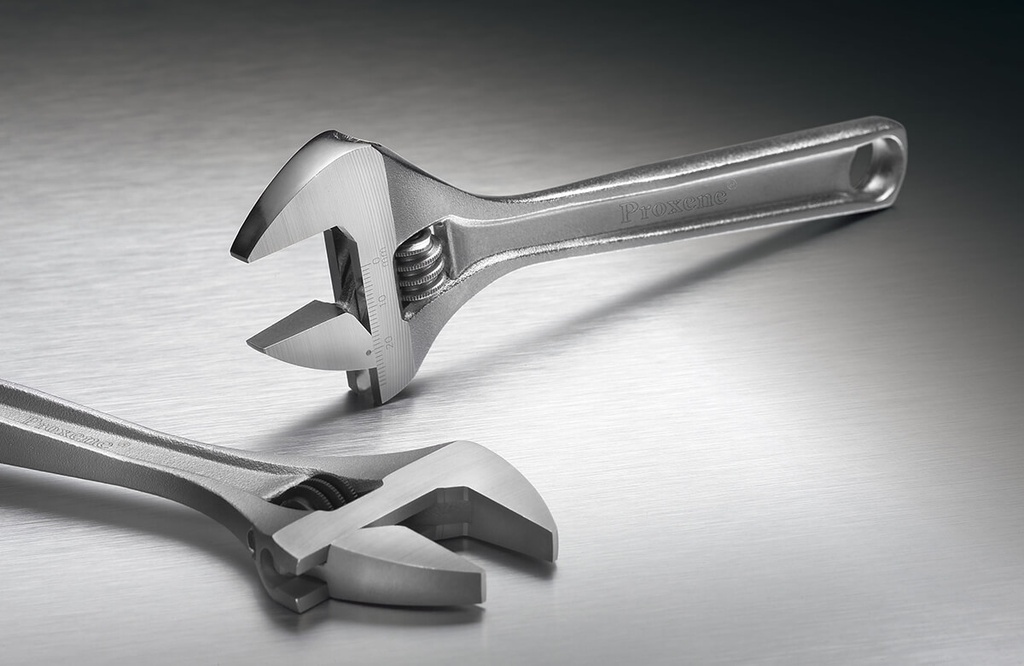

- Specialized Uniform mechanical grinding of face gives wrenches a very flat and strong industrial appearance.
Application Industry
Specifications
| SIZE INCH (mm) | STANDARD JAW OPENING (mm) | MAX. OPENING OF THE JAW(mm) | USING RANGE FOR | |
| METRIC HEXAGON NUT'S SIZE | SAE HEXAGON NUT'S SIZE | |||
| 4" (100mm) | 13mm | ≥ 17mm |
M1~M10 | W1/8~W3/8 |
| 6" (150mm) | 20mm | ≥ 23.9mm | M1~M16 | W1/8~W1/2 |
| 8" (200mm) | 24mm | ≥ 28.6mm | M1~M18 | W1/8~W5/8 |
| 10" (250mm) | 29mm | ≥ 32.8mm | M1~M22 | W1/8~W3/4 |
| 12" (300mm) | 34mm | ≥ 38.1mm | M1~M24 | W1/8~W7/8 |
| 15" (375mm) | 43mm | ≥ 50mm | M1~M33 | W1/8~W1-1/4 |
| 18" (450mm) | 53mm | ≥ 60mm | M1~M39 | W1/8~W1-1/2 |
| 24" (600mm) | 62mm | ≥ 70mm | M1~M45 | W1/8~W1-3/4 |
