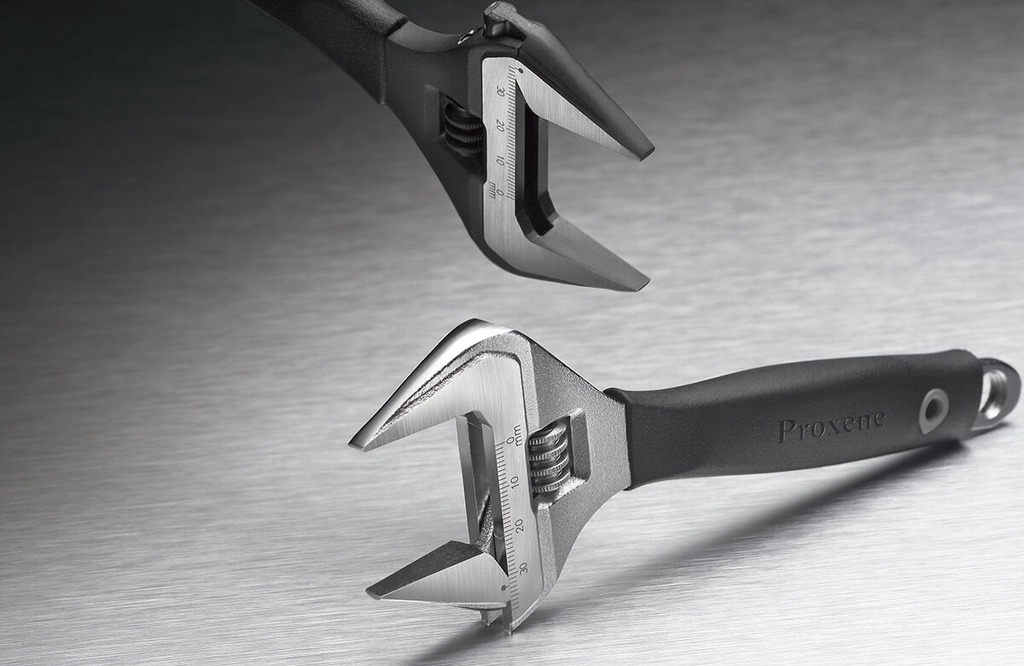

BV-Beaver Series
- Extra value:

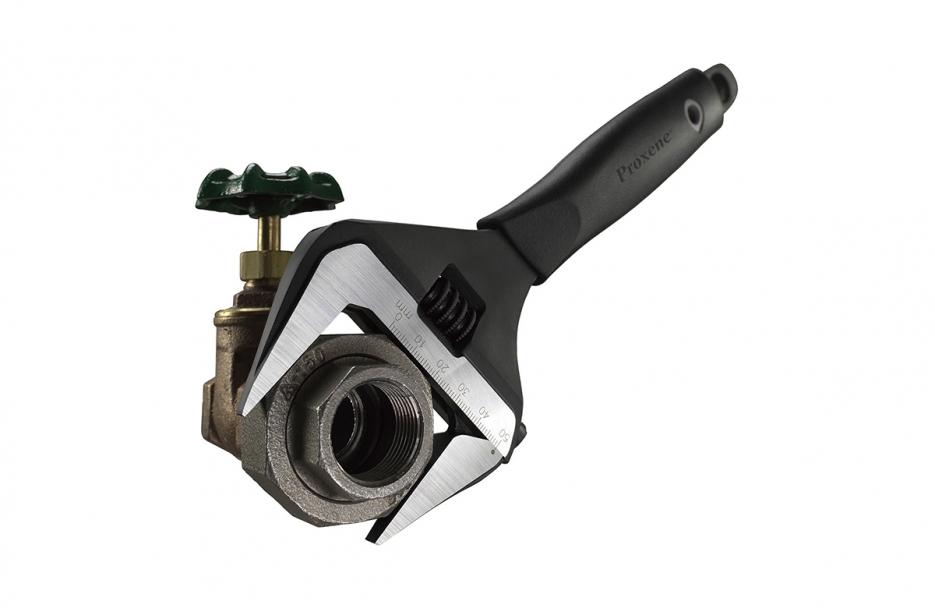

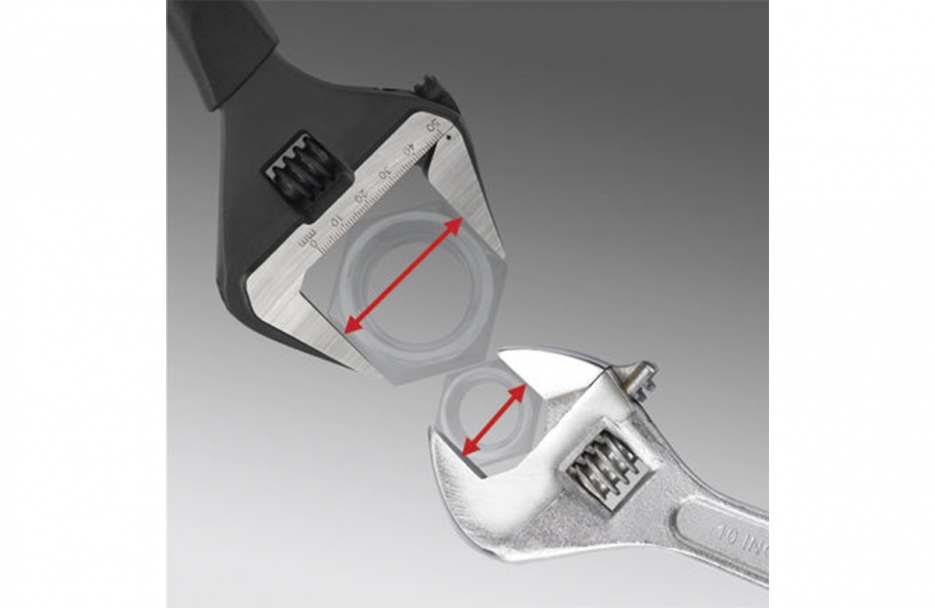

Greater jaw capacity, 55% wider than traditional one. - Above exception:
A samller angle 15∘provides greater leverage. - Slim-line:

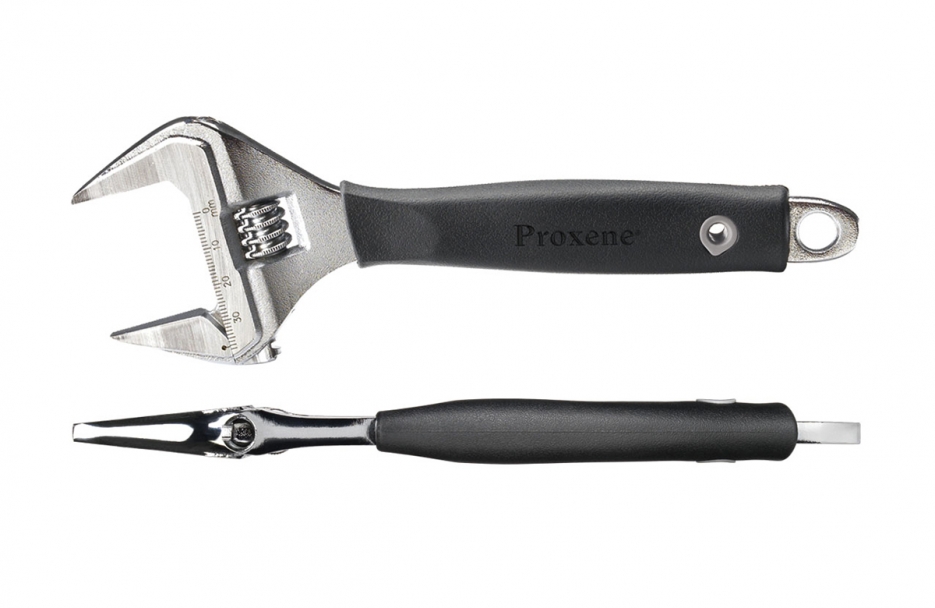

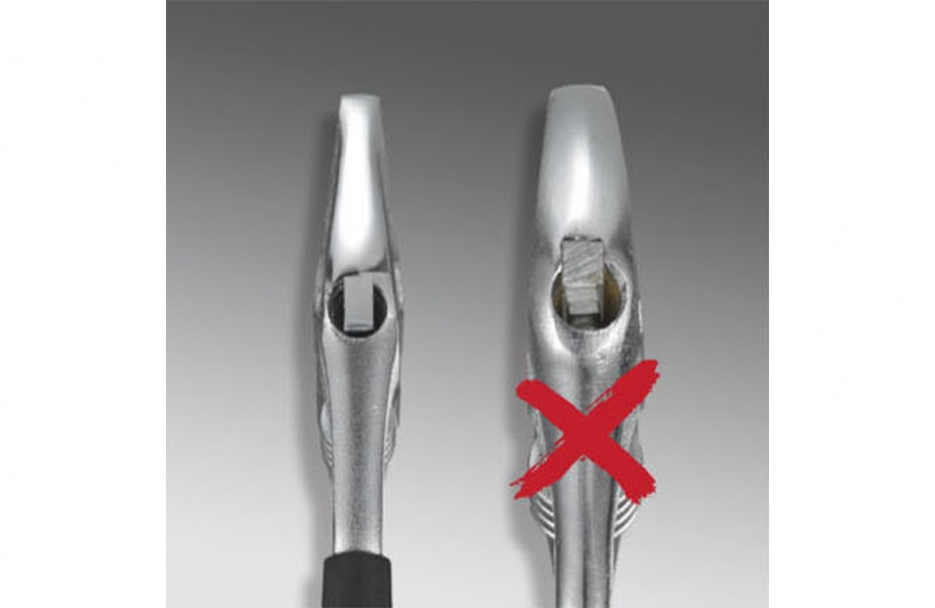

Super thin head allows to be used in a limited and narrow space. - Coverage:

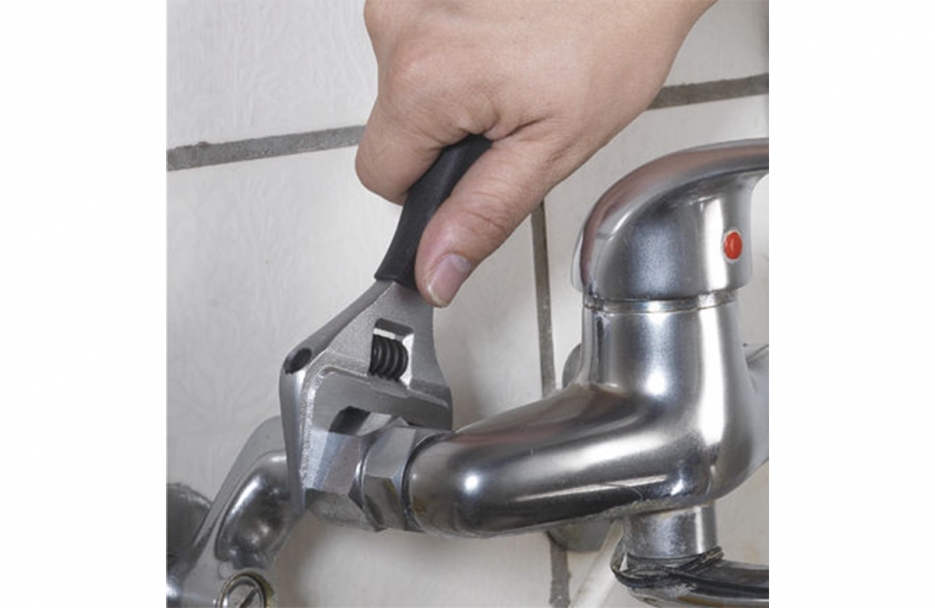

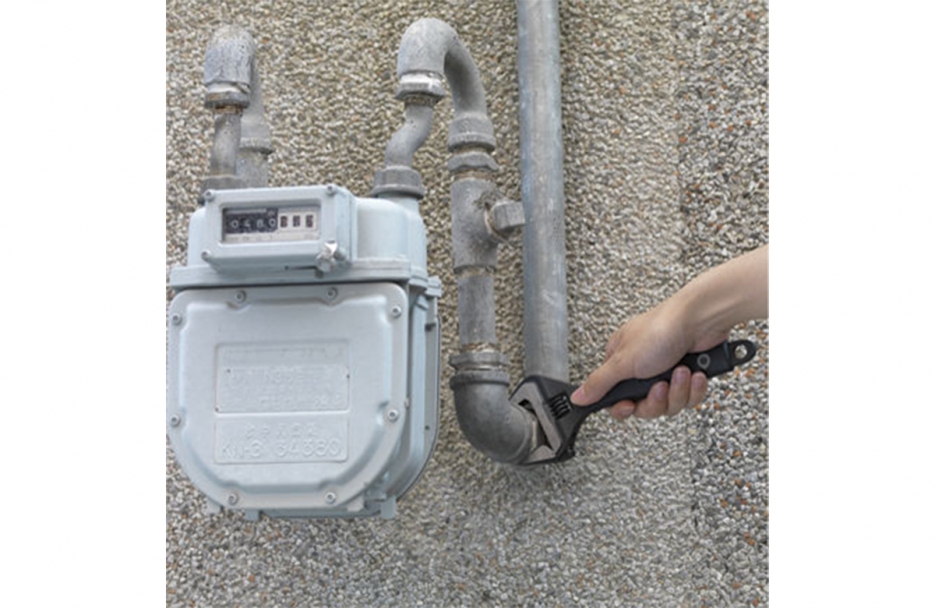

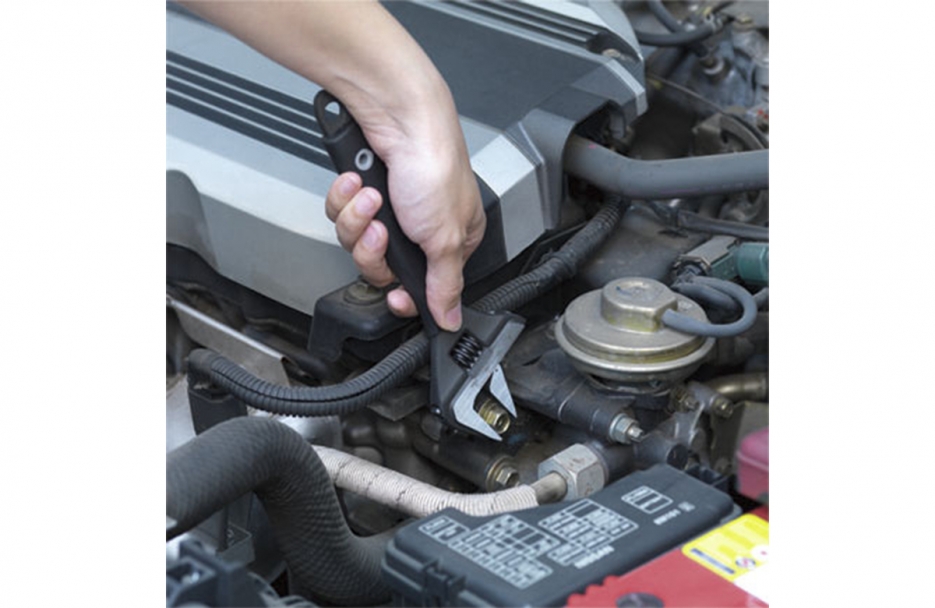

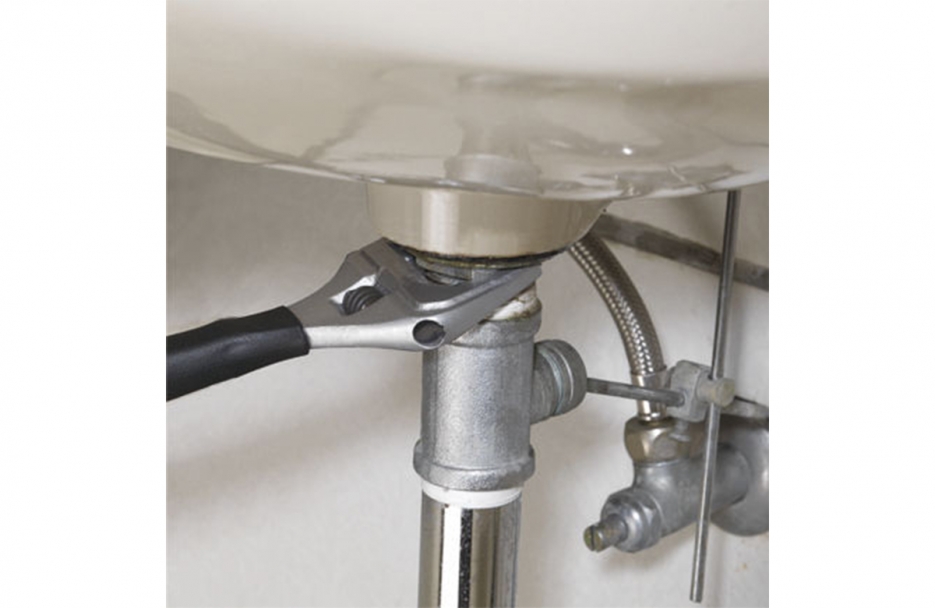

Ideal for Plumbing, Automotive, Installation & Gas fitting industries. - Zoom in:

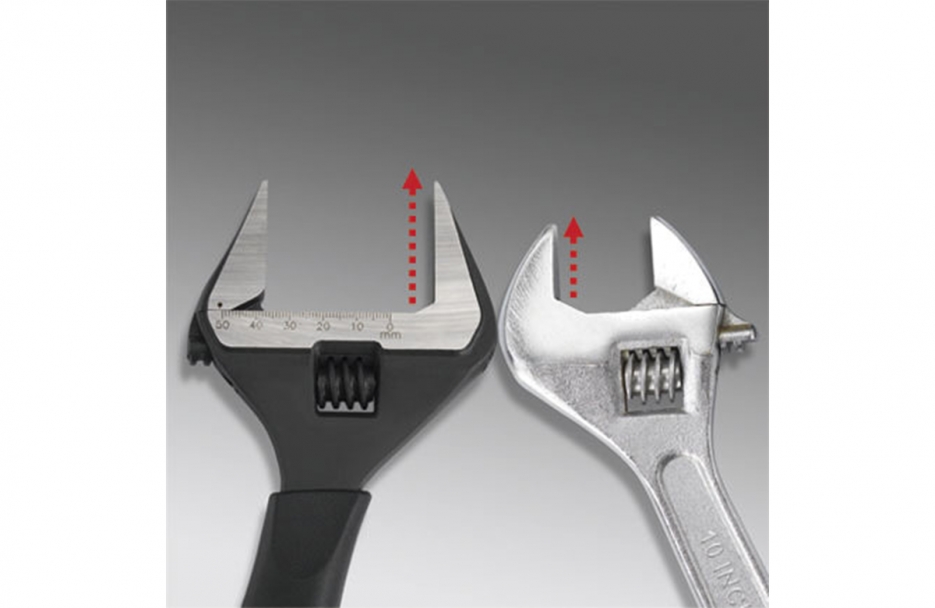

Deep throat, the height of jaws is higher than general wrench about 30%. - Yummy:

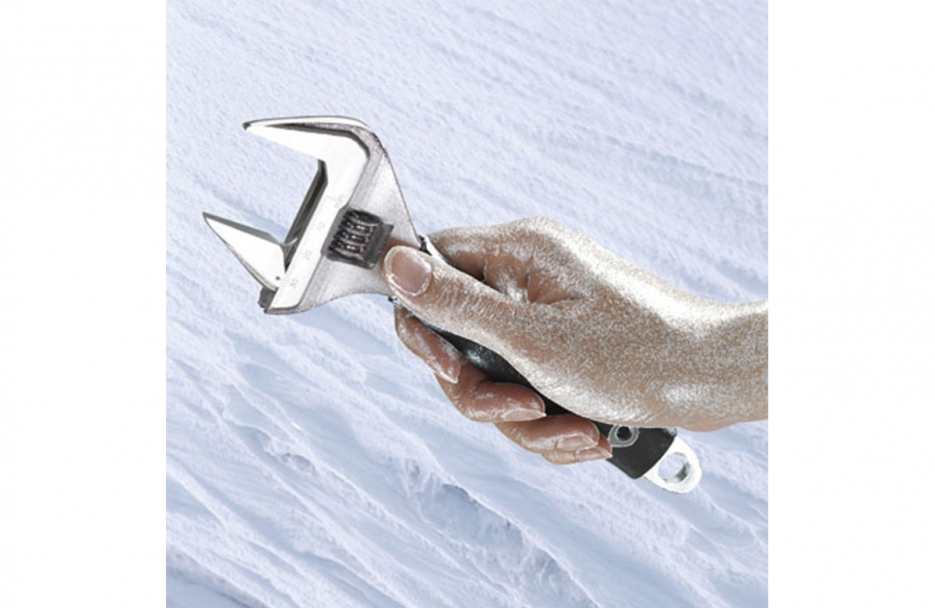

Ergonomically designed handle provides a comfortable hand fit and warm touch.
Application Industry
Specifications
|
SIZE INCH (mm)
|
STANDARD JAW OPENING (mm)
|
MINIMUM JAW OPENING (mm)
|
OVERALL LENGTH (mm) | WEIGHT (gs) | PROOF TORQUE (kgf-cm) |
|
6" (150mm)
|
20mm
|
34mm |
165mm |
168gs | 1674kgf-cm |
| 8" (200mm) |
24mm |
38.1mm |
200mm |
300gs |
3061kgf-cm |
| 10" (250mm) |
29mm |
50mm |
265mm |
546gs |
5204kgf-cm |
| 12" (300mm) |
34mm |
60mm |
310mm |
818.5gs |
8776kgf-cm |
