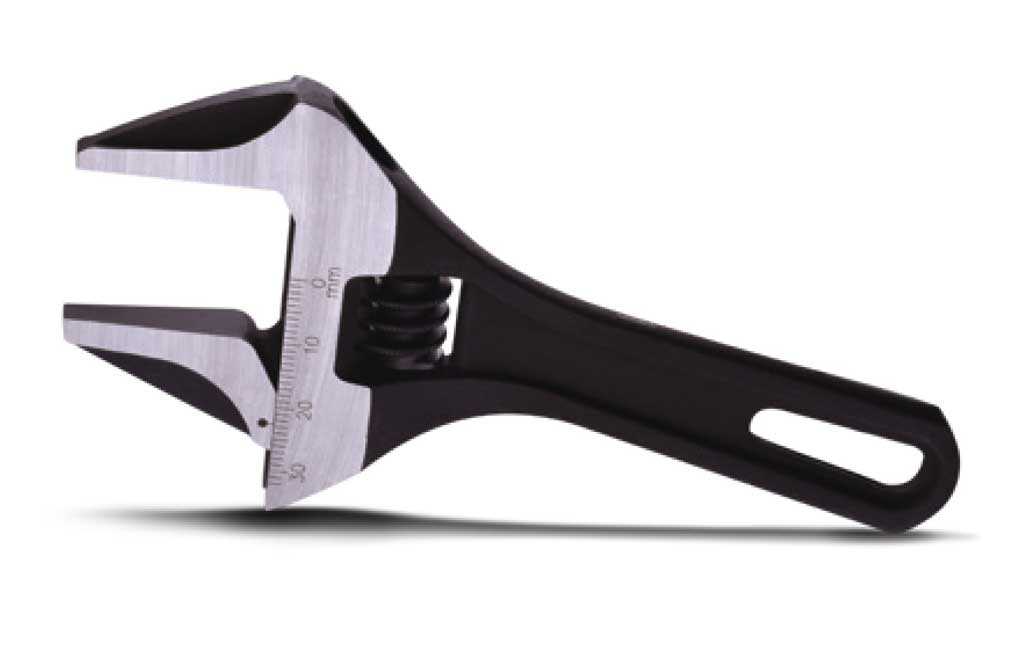

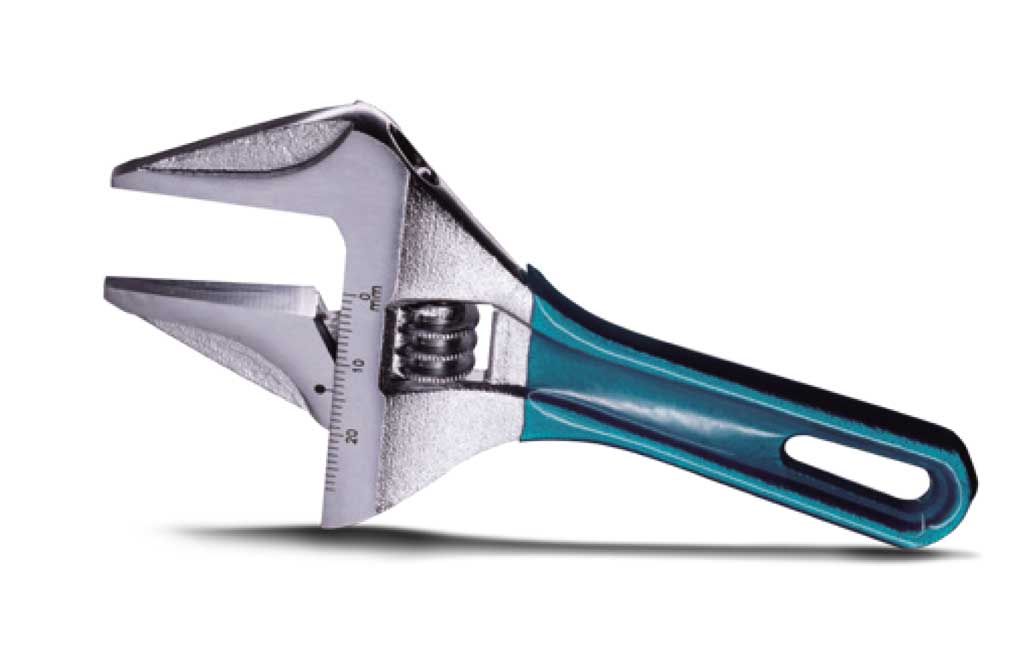

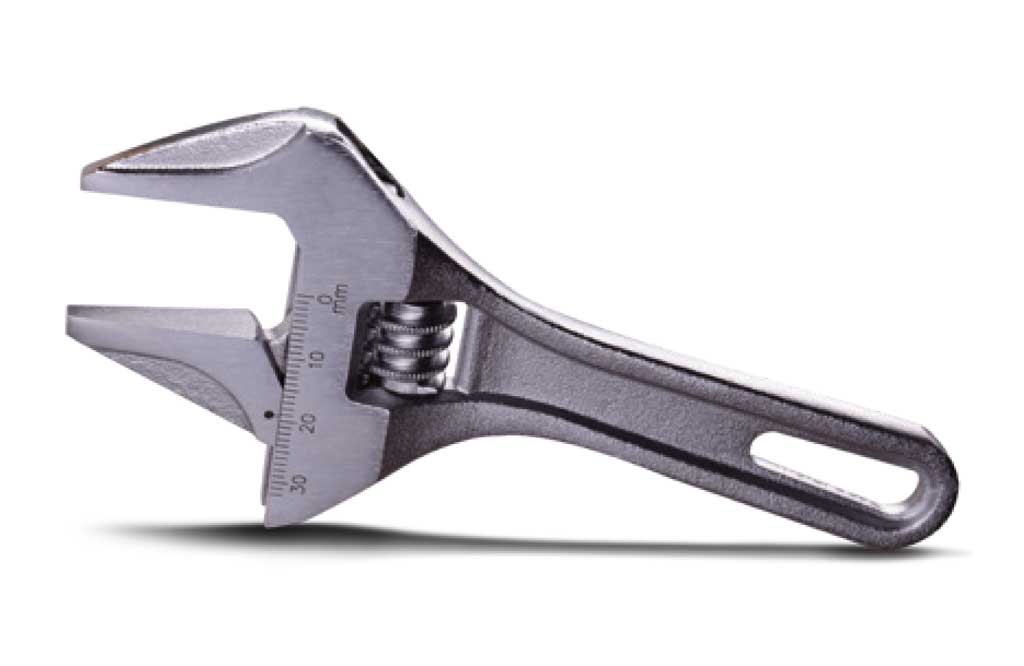

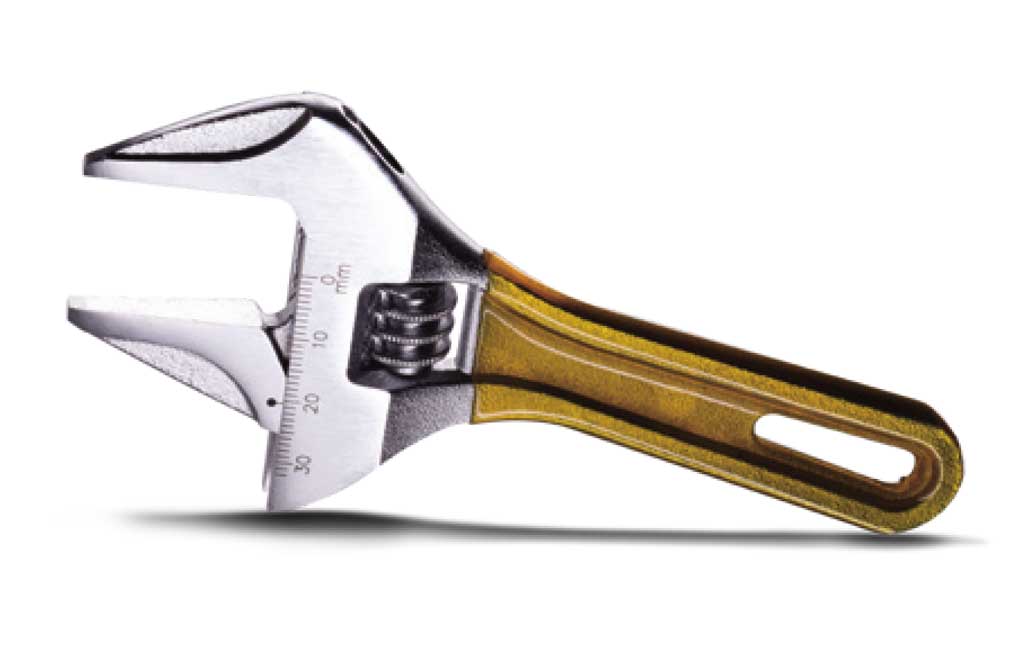

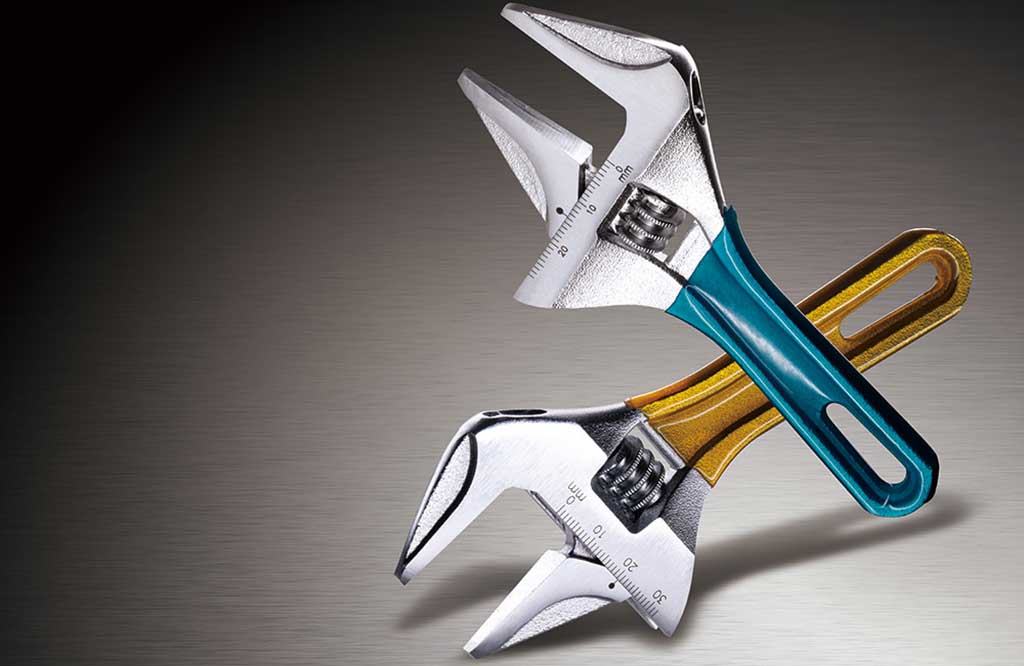

TS-Elite Light Stubby Wrench Series
Application fields for Marine, Aviation, High industry, Petrochemical & Petroleum Industry…
- Lighter:
Up to 30% lighter than standard adjustable wrench. - Wider:
Extra wide jaw opening up to 50%. - Slim-line:
Super thin head allow to be used in a limited and narrow space. - Zoom in:

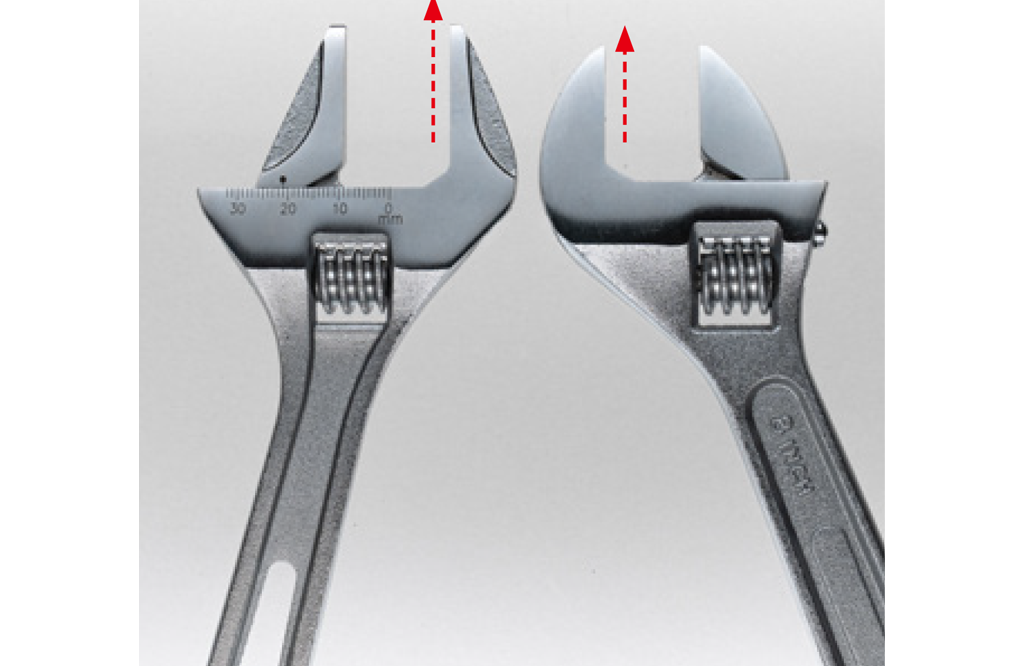

Deep throat, the height of jaw is higher than general wrench about 30%. - Industrial angle 15°:
allows wrench to be used in smaller area. - Space saving:
Non-protruding moveable jaw end idea for limit space. - Length:

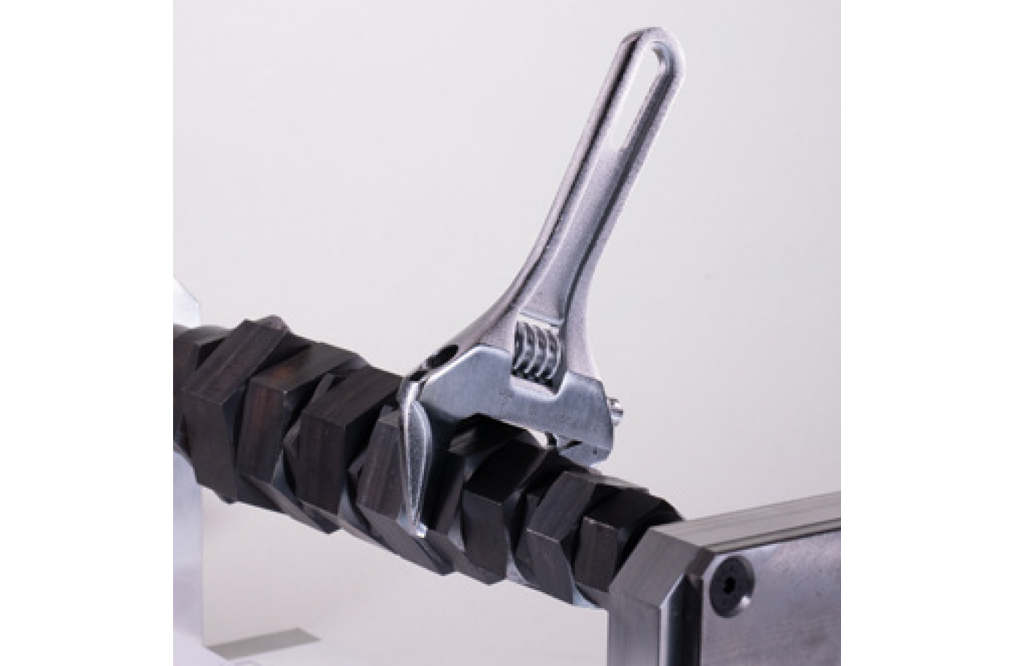

Stubby handle (LS) available - Nut protection function:
Prevent nut corner being damaged. - Bright:
Colorful handle available.
Application Industry
Specifications
| Size Inch(mm) |
Length(mm) |
STANDARD JAW OPENING (mm) | MINIMUM JAW OPENING (mm) | weight(g) | Torque (kgf-cm) |
| 6" | 118 | 20 | 28 | 103 | 1674 |
| 8" | 139 | 24 | 32 | 154 | 3061 |
| 10" | 156 | 29 | 43 | 235 | 5204 |
| 12" | 185 | 34 | 53 | 398 | 8776 |
