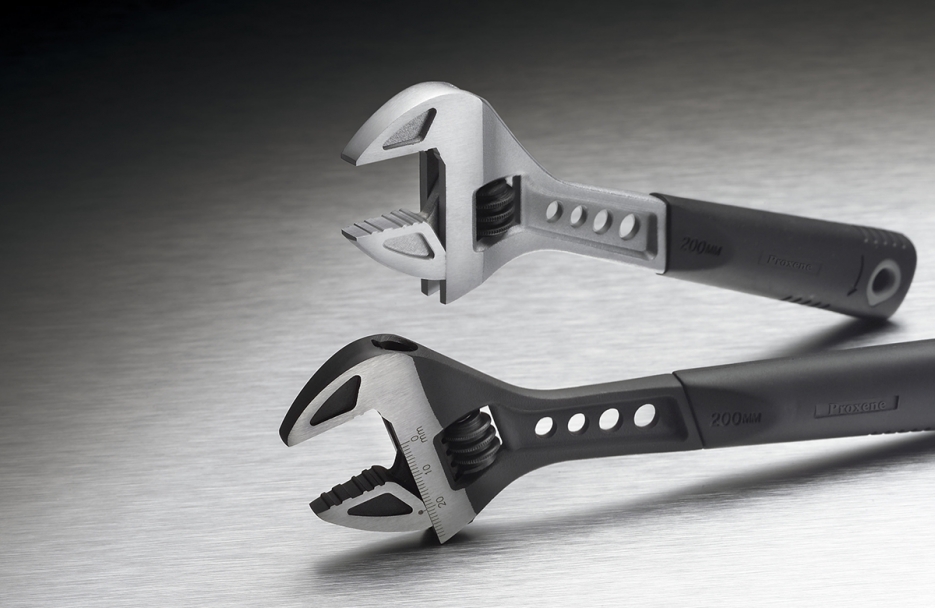

FP-Tiger's Paw
- Superior:
18% - 25% wider Jaw Opening increases useful range of fastener sizes. - Durability:
The patented triangle-sinkage design on either jaws, increase the hardness by 3HRC in this area. - Strong:
New geometric “Less Weight, Stronger Handle Design“ reduce 10% of the overall weight. - Security:
Handle button lock the TPR grip with steel together, an anti-slip design for safety. - Guide:
Direction of proper use is indicated by an easy to read arrow. - Friendly:
Anti-slip TPR handle and nature guide of using direction.
Application Industry
Specifications
| SIZE (mm) | STANDARD JAW OPENING (mm) | MINIMUM JAW OPENING (mm) | USING RANGE FOR | THE PROTECTED FASTENER RANGE | |
| METRIC HEXAGON NUT'S SIZE | SAE HEXAGON NUT'S SIZE | ||||
| 4" (100mm) | 13mm | 17mm | M1~M10 | W1/8~W3/8 | M2, 2.5, 3, 4, 5, 8, 10 |
| 6" (150mm) | 20mm | 23.9mm | M1~M16 | W1/8~W1/2 | M3, 4, 5, 8, 12, 16 |
| 8" (200mm) | 24mm | 28.6mm | M1~M18 | W1/8~W5/8 | M4, 5, 6, 8, 10, 12, 16, 18 |
| 10" (250mm) | 29mm | 32.8mm | M1~M22 | W1/8~W3/4 | M6, 8, 10, 12, 16, 18, 20 |
| 12" (300mm) | 34mm | 38.1mm | M1~M24 | W1/8~W7/8 | M6, 8, 10, 12, 16, 20, 24 |
| 15" (375mm) | 43mm | 50mm | M1~M33 | W1/8~W1-1/4 | M8, 10, 12, 16, 24, 30, 33 |
