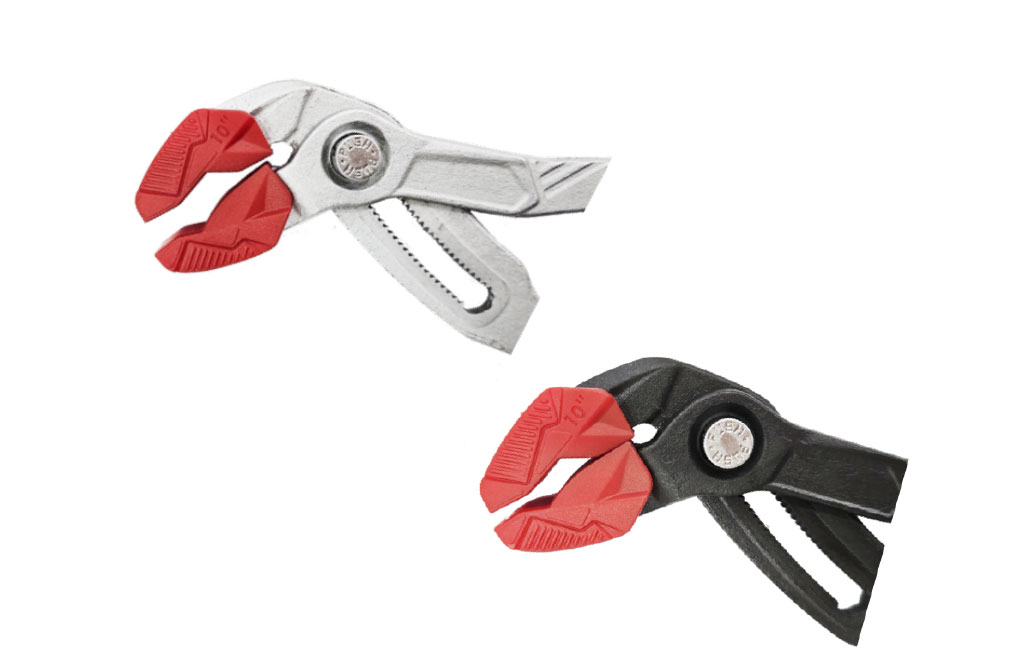

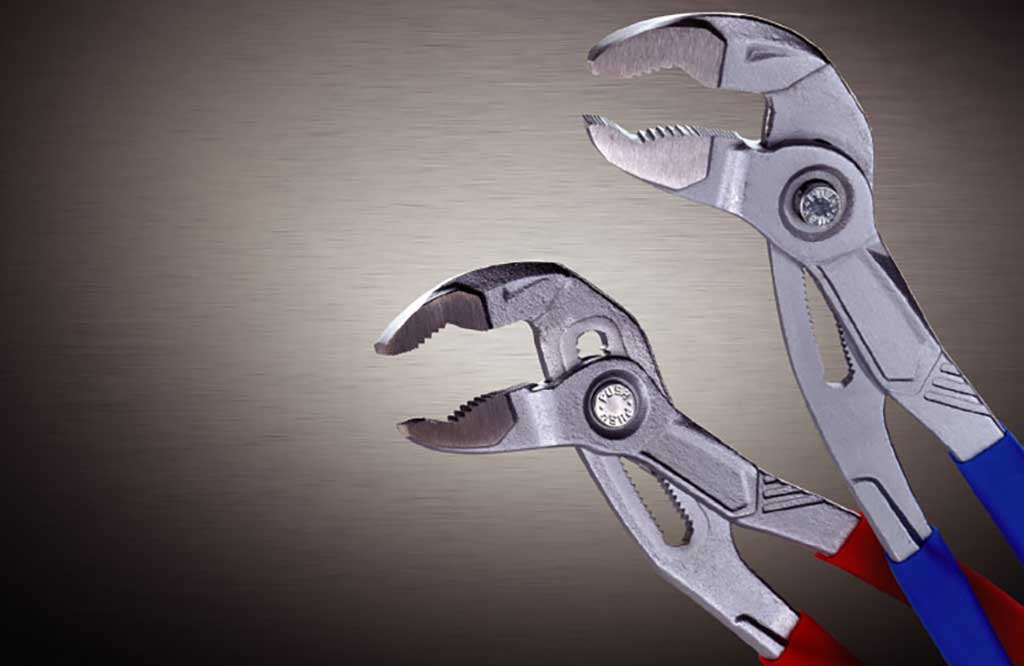

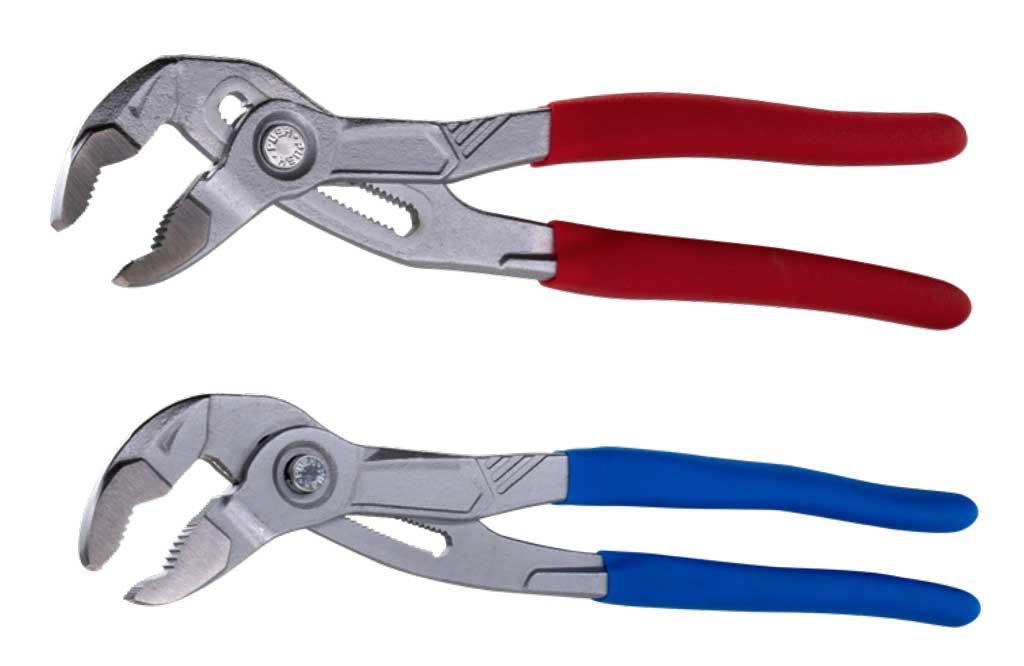

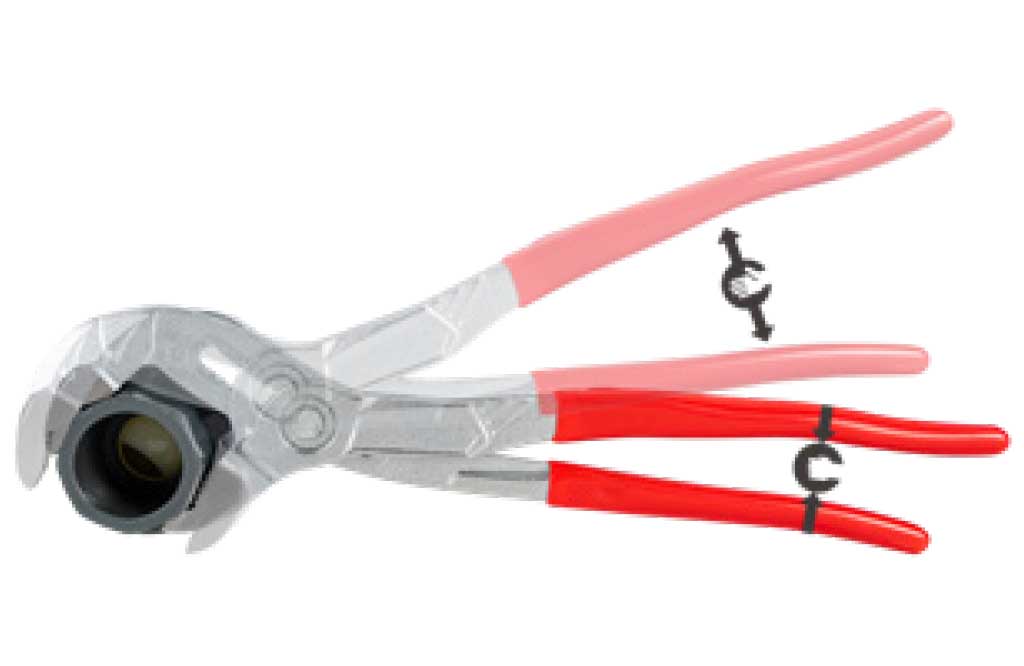

WS-Water Pump Pliers Series
- Material: High Performance Chrome Vanadium Steel
- Whole piece Hot Forged.
- Push the button for adjustment easier.

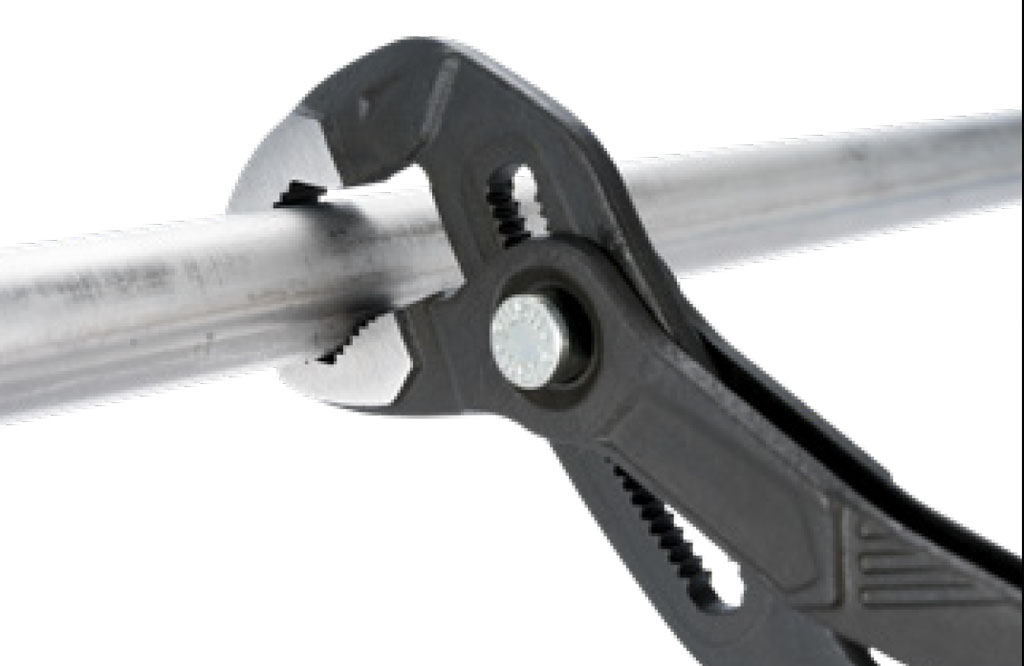

- Curved teeth: Increase the contact area on round pipes for stronger gripping performance.
- In-slot lower jaw provides safer and steadier working experience.
- Wide range of adjustment settings increase useful range of tube sizes.
- High resistance and stable Gripping surfaces with special hardened teeth up to 60HRC.
- Comfortable handle width design without pinch your fingers.

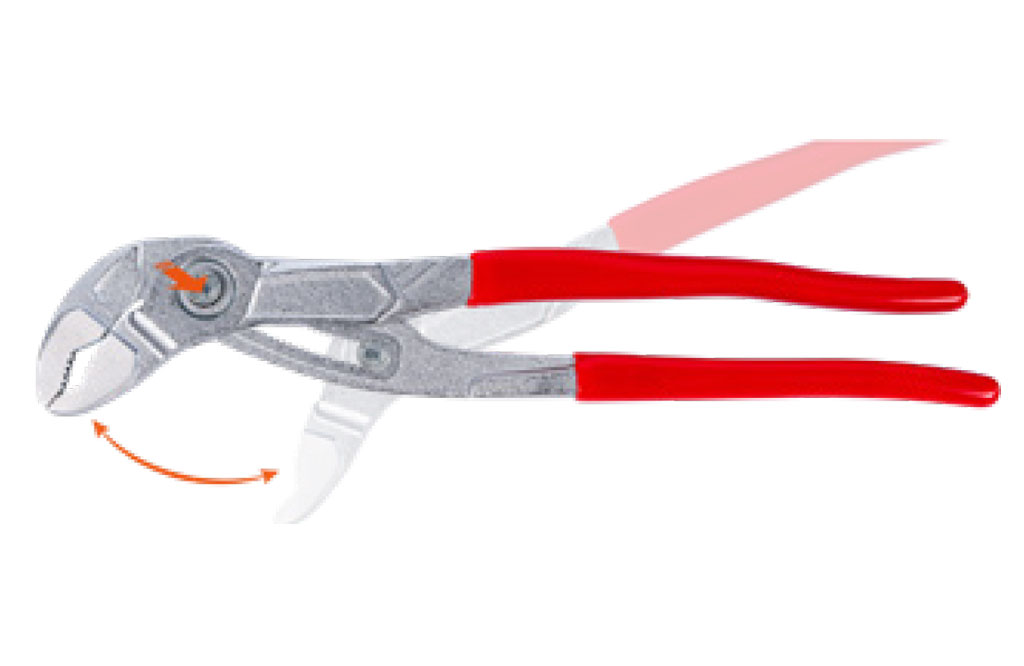

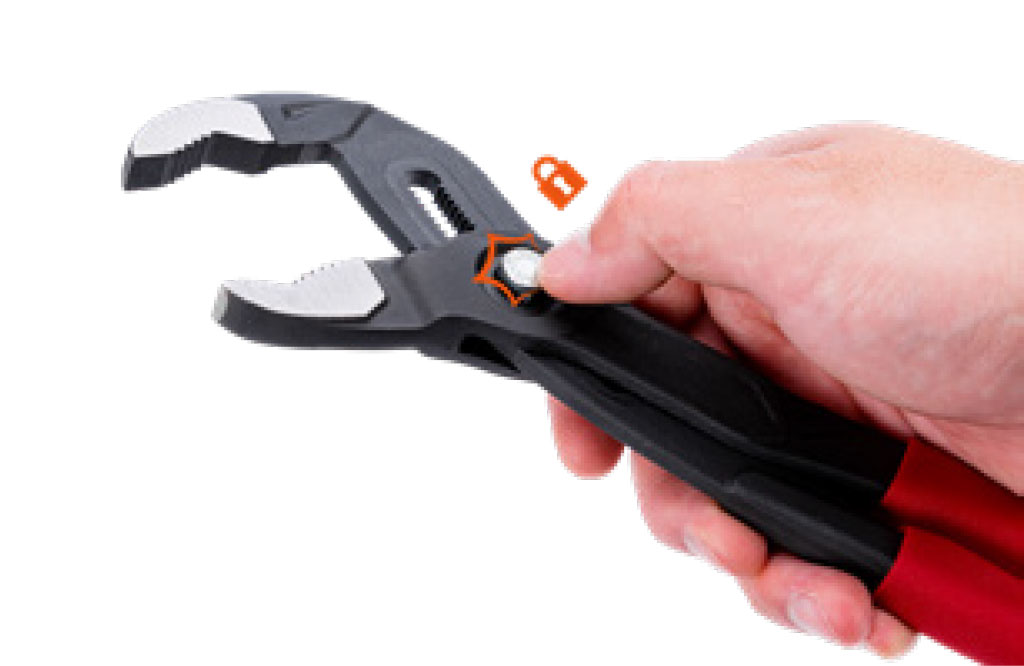

- Quick and easy push button enhance movements of tightening and releasing.

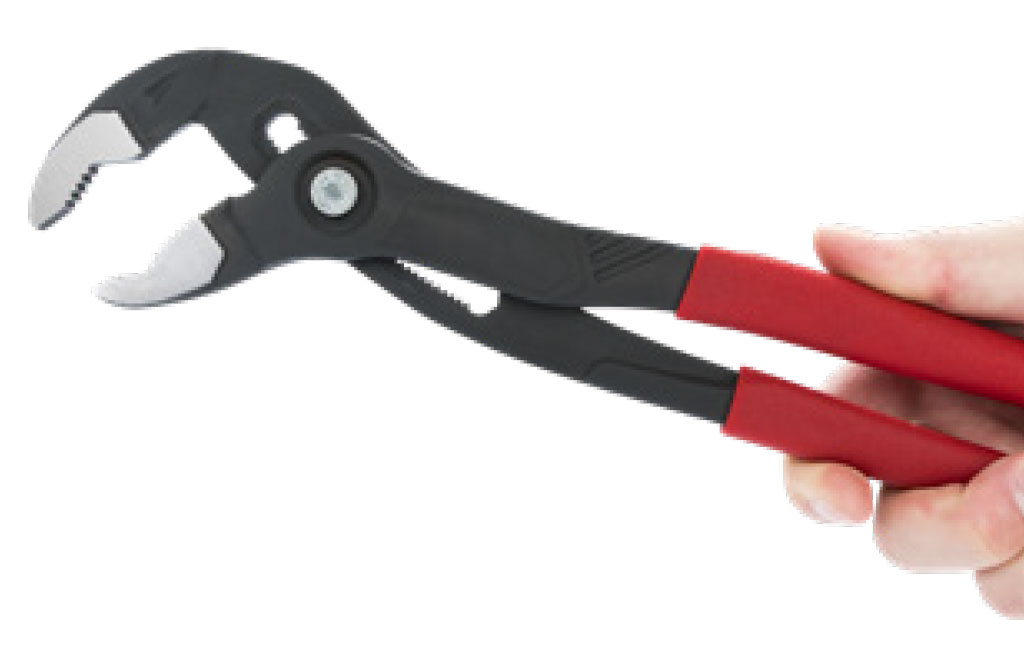

- Quickly and accurately with just one hand movement.
- Worldwide Patented
Application Industry
Specifications
| SIZE INCH (mm) |
Max. Opening of the Jaw (mm) |
Jaw Depth (mm) | Adjustment Settings | Weight (g) |
| 5” (128±5.0mm) | Ø 1 Inch Ø30 mm M22 (32 mm) | 24 | 13 settings | - |
| 7 (185±5.0mm) |
Ø1-1/2 inch Ø42 mm M24 (36 mm) | 31±1.0mm | 18 settings | 200g |
| 10” (257.3±1.0mm) | Ø2 inch Ø50 mm M30 (46 mm) | 37.5±1.0mm | 25 settings | 370g |
| 12” (308.0±1.0mm) | Ø 2 3⁄4 inch Ø 70 mm M39(60 mm) | 45.7±1.0mm | 30 settings | 580g |
